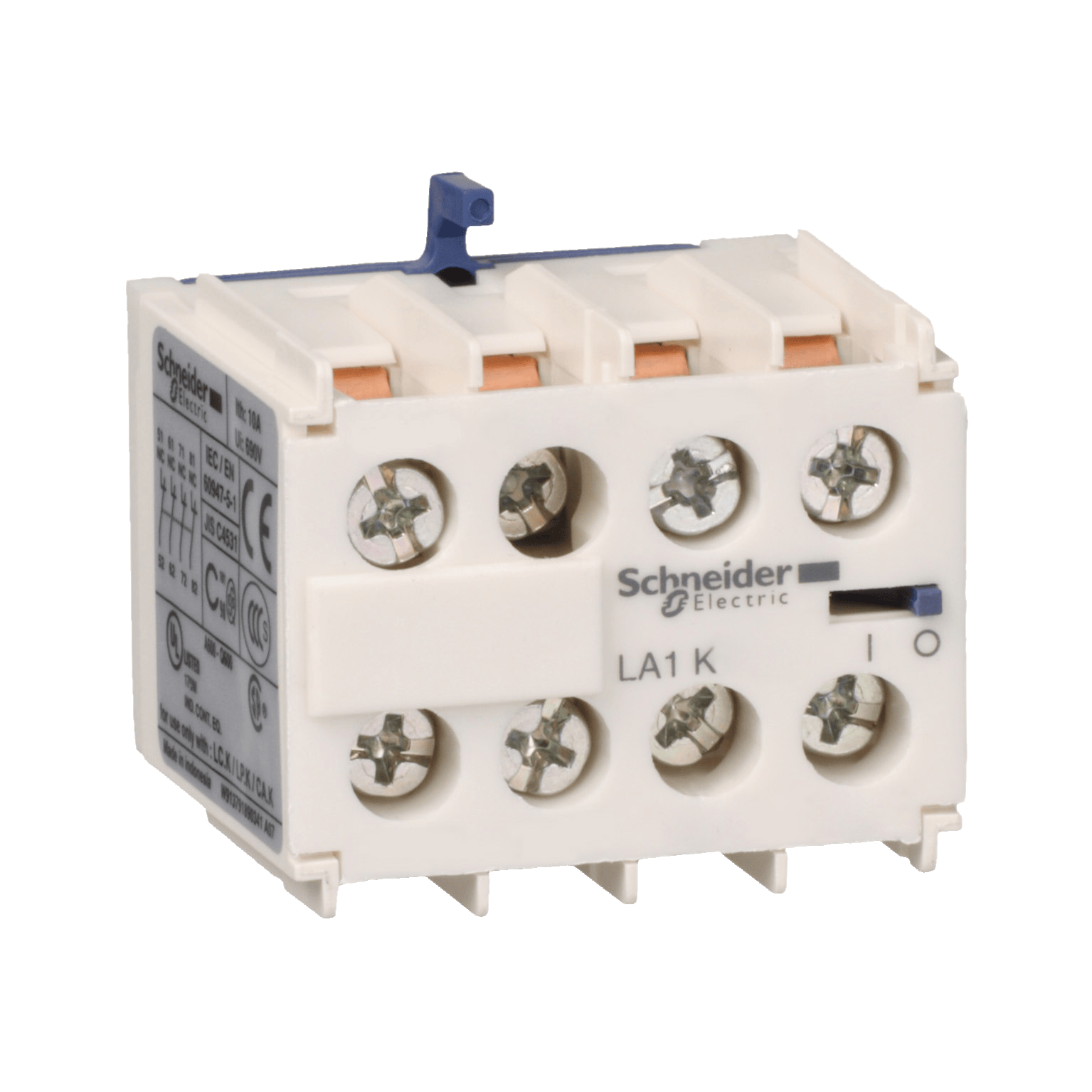

TeSys K instantaneous auxiliary contact block, for contactors LC.K, LP.K, CA.K with screw clamp terminals (except LP4K, LP5K, CA4K). It provides 3NO+1NC contacts rated up to 10A 690V AC, connection by screw clamp terminals. Front mounting by clip-on, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC), Green Premium compliant (RoHSEACh).
| Brand | Schneider Electric |
|---|---|
| Green_premium_status | TRUE |
| [Ue] rated operational voltage | 690 V AC 25…400 Hz |
| ambient air temperature for operation | -25-50 °C |
| ambient air temperature for storage | -50-80 °C |
| Depth | 35 mm |
| Height | |
| Width | |
| Compatibility code | LA1 |
| Connections terminals | screw clamp terminals 1 cable(s) 0.34-1.5 mm²flexible with cable end |
| Ip degree of protection | IP20 conforming to IEC 60529 |
| supplier sku | LA1KN31 |
| Main pole contacts | 3 NO + 1 NC |
