Description

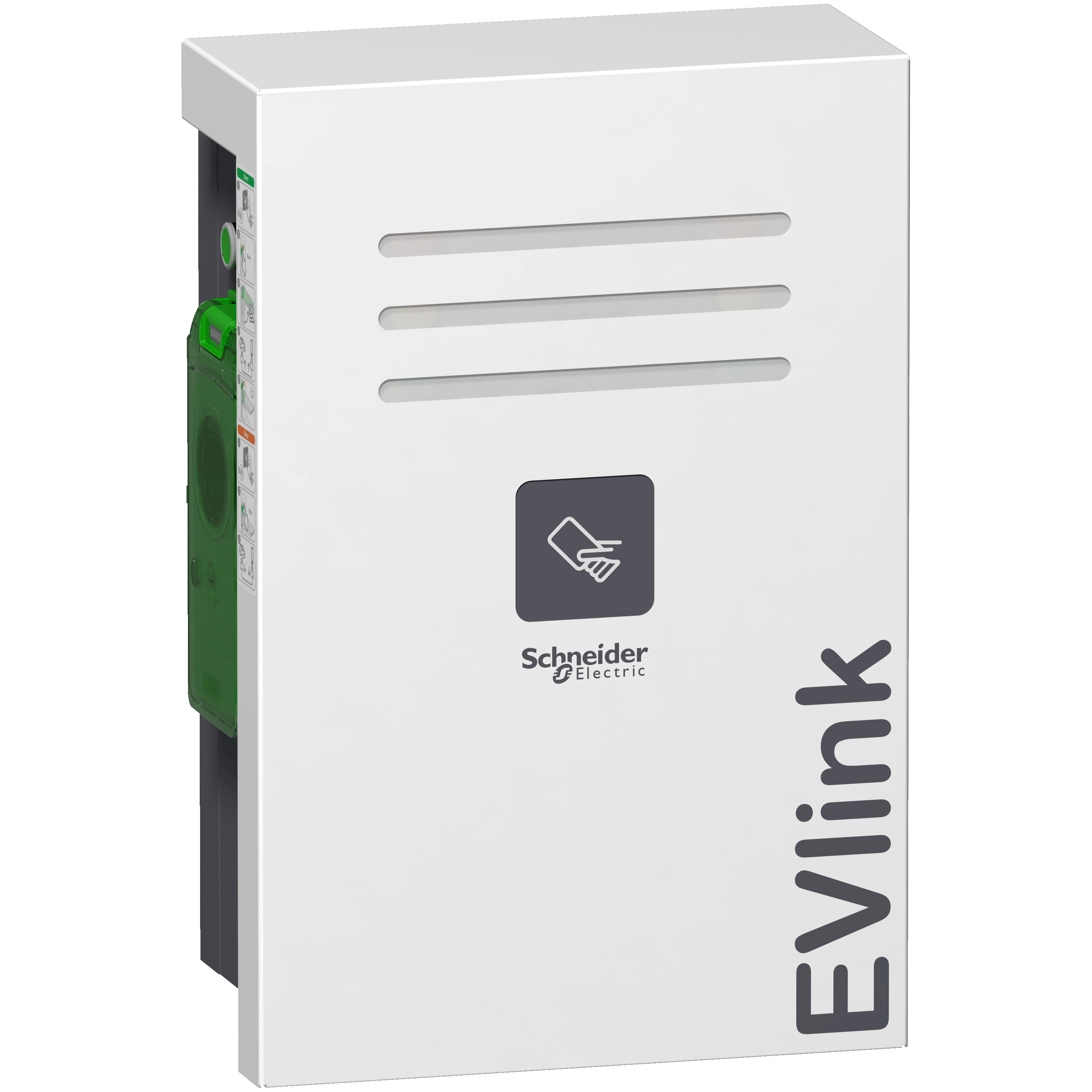

EVlink PARKING Wall Mounted 22KW 2xT2 With Shutter RFID EV CHARGING STATION
“EST. 1987”
“EST. 1987”
EVlink PARKING Wall Mounted 22KW 2xT2 With Shutter RFID EV CHARGING STATION
| Brand | Schneider Electric |
|---|---|
| Green_premium_status | TRUE |
| ambient air temperature for operation | -30-50 °C conforming to IEC 61851-22 |
| ambient air temperature for storage | -40-80 °C |
| Colour | |
| Depth | 256 mm |
| Height | |
| Width | |
| [us] rated supply voltage | 230 V AC 50/60 Hz control circuit |
| Control type | 2 green illuminated push-button, function: start/unlock flap |
| Ip degree of protection | IP54 off load conforming to IEC 61851-1 |
| Local signalling | available: 2 LED (green) on front |
| supplier sku | EVW2S22P44R |
| Socket number | 2 |
| Product name | EVlink parking |
| Nominal output power | 22 kW for T2 with shutter |
| Mounting mode | wall-mounted |
| Socket outlet type | 2 x T2S |
| Supply voltage1 | 380…415 V AC 50/60 Hz power circuit |
| Supply voltage2 | 230 V AC 50/60 Hz control circuit |
