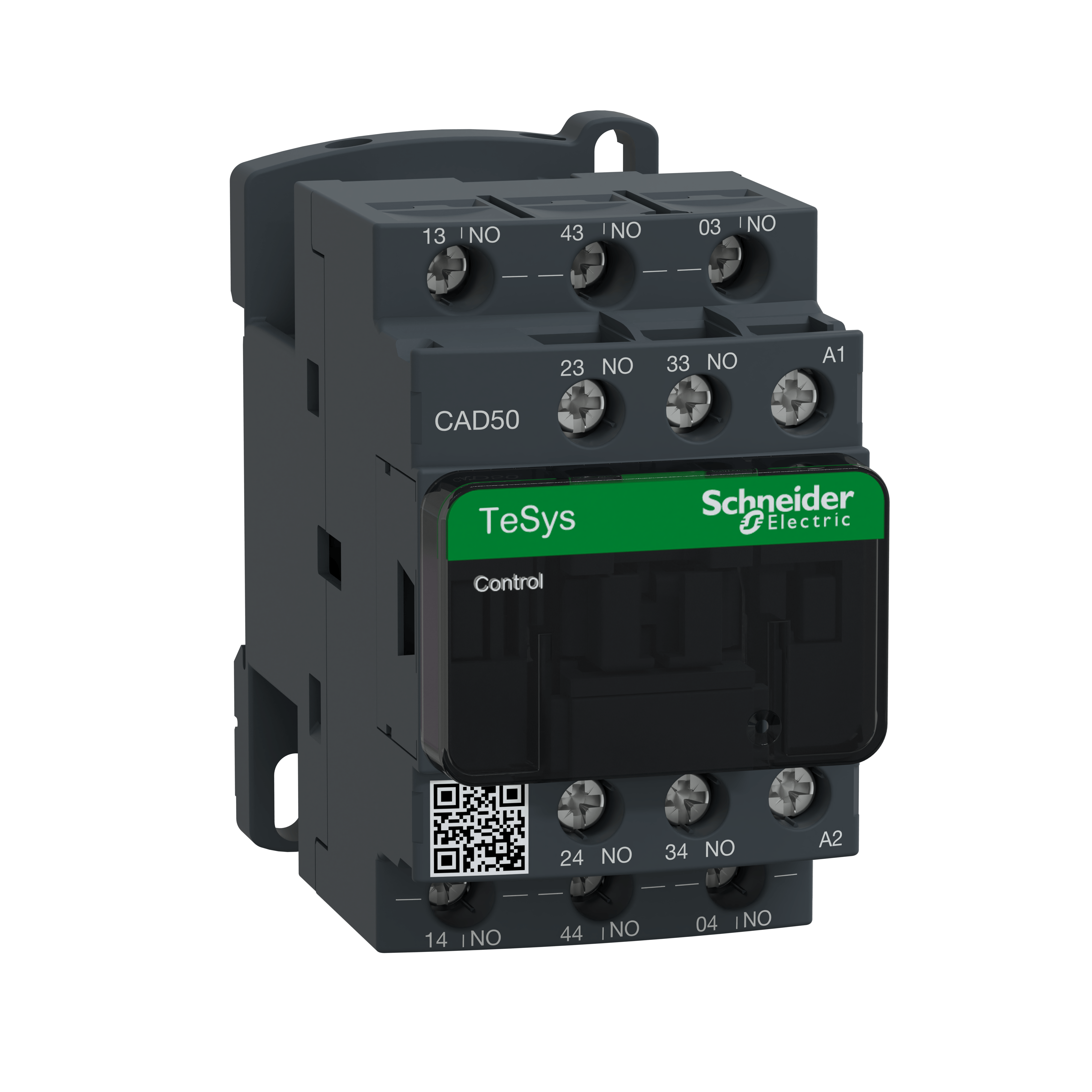

TeSys D control relay, 5 contacts (5NO), 10A690V, for control of electromagnetic loads AC-15DC-13. It provides a 110V 5060Hz AC control circuit, connection by screw clamp terminals. For high operating rates until 180 cyclesmin and ambient temperature -40+60u00b0C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium product (RoHSEACh).
| Brand | Schneider Electric |
|---|---|
| [Icw] rated short-time withstand current | 100 A – 1 s |
| [Ue] rated operational voltage | <= 690 V AC 25…400 Hz |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947 |
| ambient air temperature for operation | -40-60 °C |
| ambient air temperature for storage | -60-80 °C |
| Depth | 84 mm |
| Height | |
| Width | |
| Compatibility code | CAD |
| Connections terminals | screw clamp terminals 1 cable(s) 1-4 mm²flexible with cable end |
| Ip degree of protection | IP2x front face conforming to VDE 0106 |
| Mechanical durability | 30 Mcycles |
| supplier sku | CAD50F7 |
| Main pole contacts | 5 NO |
TeSys D control relay, 5 contacts (5NO), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 110V 50/60Hz AC control circuit, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh).
