Description

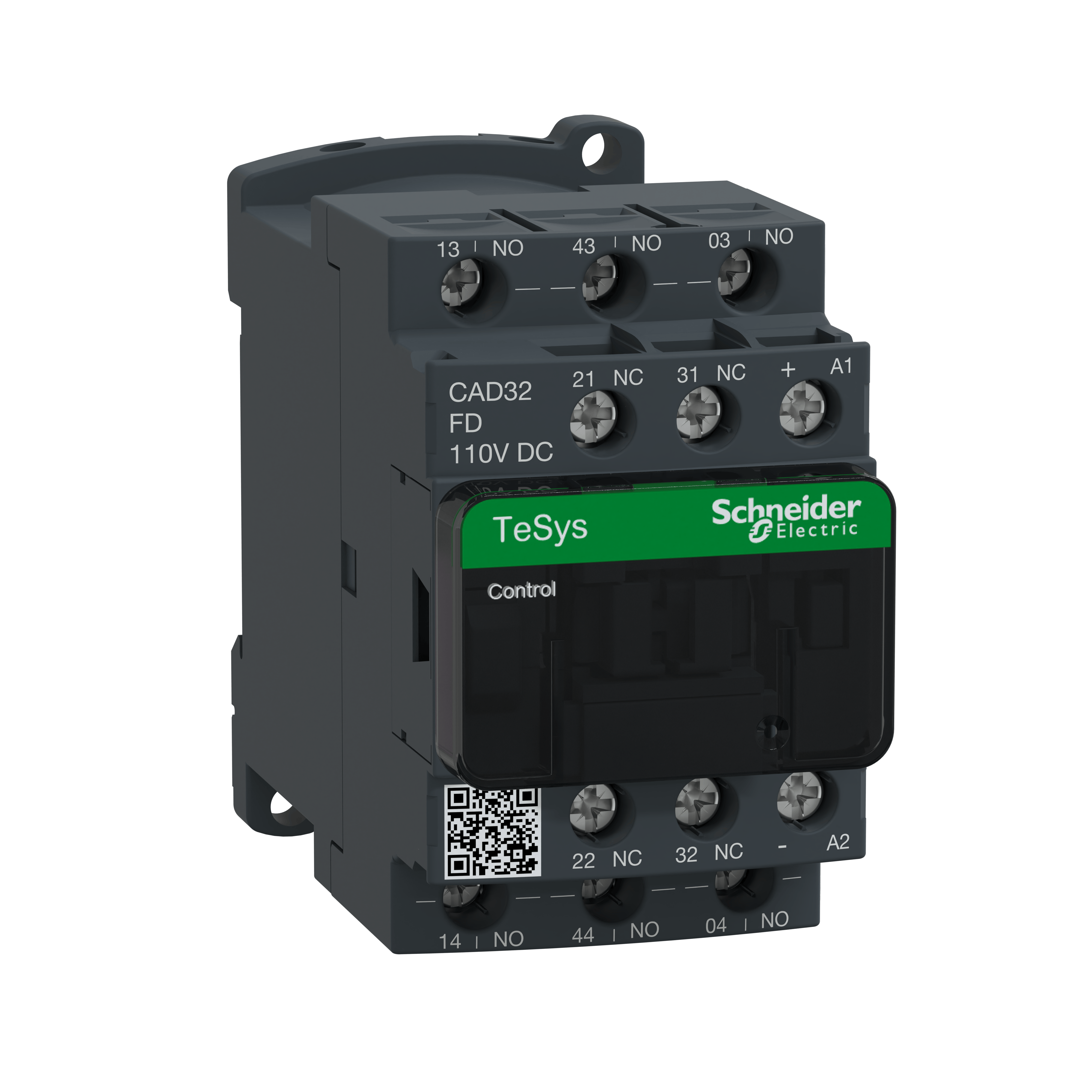

TeSys D control relay, 5 contacts (3NO + 2NC), 10A690V, for control of electromagnetic loads AC-15DC-13. It provides a 110V DC control circuit with no inrush consumption and equipped with a surge suppression device, connection by screw clamp terminals. For high operating rates until 180 cyclesmin and ambient temperature -40+60u00b0C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium product (RoHSEACh).
