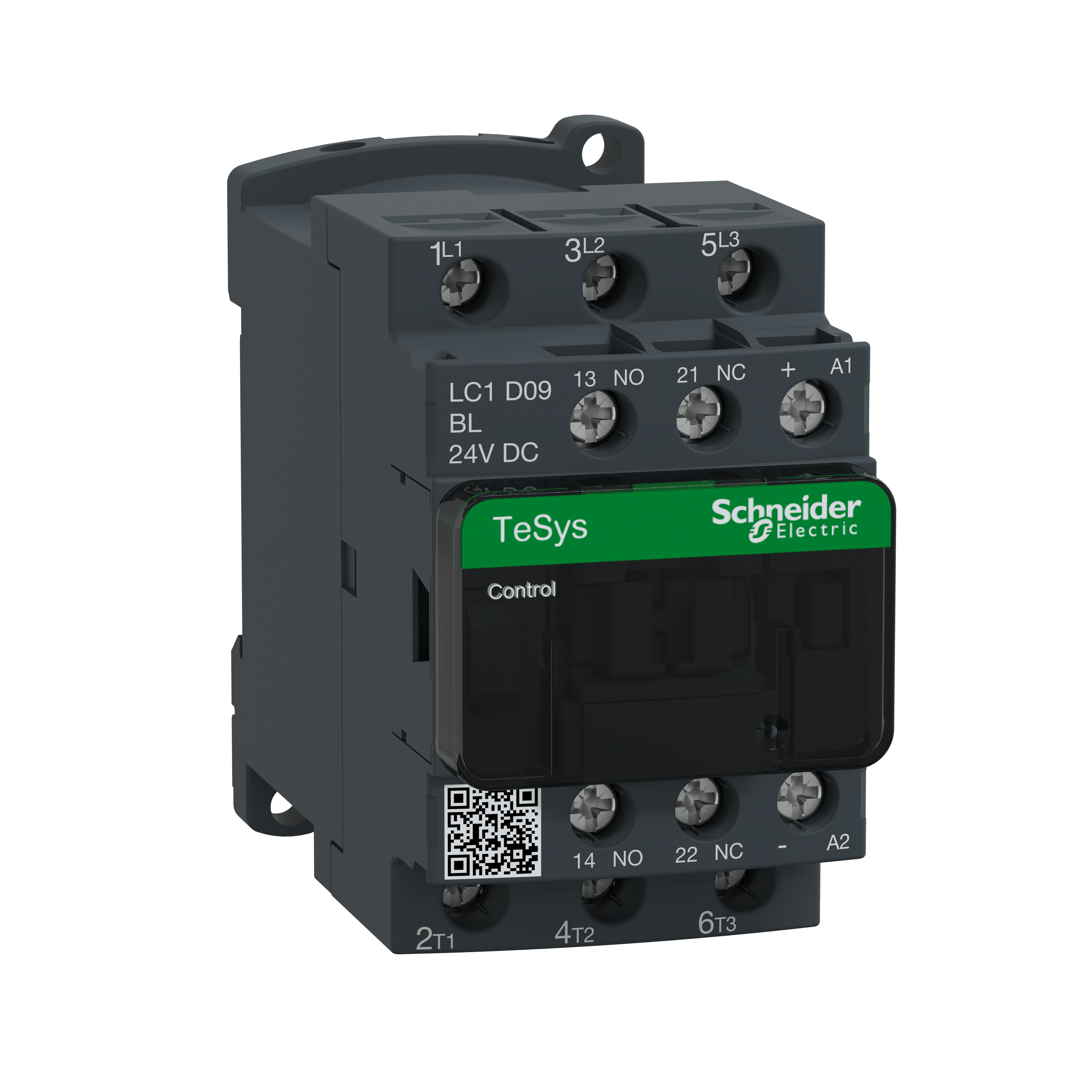

LC1D09BL - TeSys Deca contactor - 3P(3 NO) - AC-3/AC-3e - <= 440 V 9 A - 24 V DC coil

LC1D09BL – TeSys Deca contactor – 3P(3 NO) – AC-3/AC-3e – <= 440 V 9 A – 24 V DC coil

Contact us for pricing
SKU SCHLC1D09BL Category

Description

TeSys D contactor, 3 poles (3NO), for motor control applications up to 9A690V AC-33e (4kW@400V). It provides a low consumption 24V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycleshour and environments until 60u00b0C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHSEACh).

Additional information

Brand

Schneider Electric
[Icw] rated short-time withstand current

100 A – 1 s for signalling circuit
[Ie] rated operational current

25 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
[Ue] rated operational voltage

power circuit: <= 300 V DC
[Uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947
ambient air temperature for operation

-40-60 °C
ambient air temperature for storage

-60-80 °C
Depth

95 mm
Height
Width
Compatibility code

LC1D
Connections terminals

control circuit: screw clamp terminals 1 cable(s) 1-4 mm²flexible with cable end
Electrical durability

0.6 Mcycles 25 A AC-1 at Ue <= 440 V
Ip degree of protection

IP20 front face conforming to IEC 60529
Mechanical durability

30 Mcycles
supplier sku

LC1D09BL
Motor power kw

4 kW
Rated current

9 A
Auxiliary contacts

1 NO + 1 NC
Coil voltage

24 V DC
Main pole contacts

3 NO

Details

TeSys D contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3/3e (4kW@400V). It provides a low consumption 24V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
